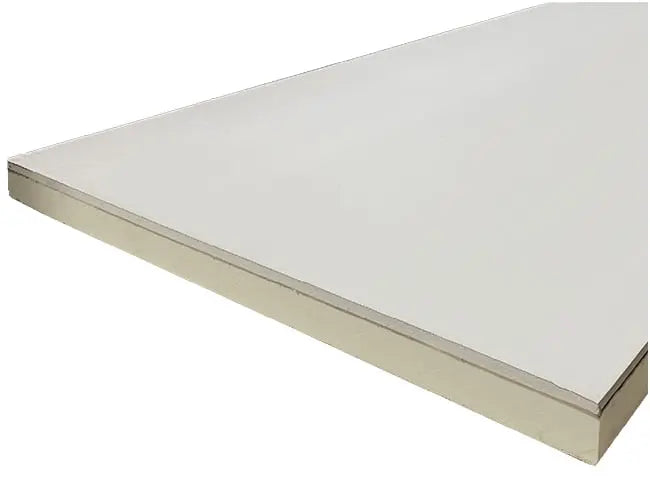

Celotex PL4000 (Sopratherm) insulated plasterboard

How to Install Insulated Plasterboard on Battens, Studs and Ceilings

Black Friday to Cyber Monday: once-in-a-lifetime Celotex (now Sopratherm) PIR insulation board prices. 10% rise in January, act now. Ends Mon 30 Nov.

Insulated plasterboard lets you insulate and line a wall or ceiling in one go. This guide covers the mechanical methods: timber battens on masonry, timber stud walls, metal wall-lining systems such as Gypliner, and ceilings. The fixing centres and penetration figures below come from Kingspan's installation guidance for Kooltherm K118 and are a useful benchmark — always follow the current instructions for the board you are using. If you are bonding boards straight onto a solid wall with adhesive dabs, use our separate guide on how to fit insulated plasterboard to a solid wall.

Shop this. Insulated plasterboard at trade prices, plus the Gypliner metal lining if you are fixing to a frame.

Shop insulated plasterboard Shop Gypliner & wall lining

Quick answer

Fix a support first — treated timber battens, timber studs, or a metal lining such as Gypliner — then screw the insulated plasterboard to that framing. On ceilings, run the long edges across the joists and use closer fixing centres. Seal the perimeter and tape or skim the joints. For thickness and U-values on a solid wall, see the solid wall guide; Building Control or the designer must confirm the figure for your job.

Tools

  • Tape measure, pencil, spirit level and a long straight edge.
  • Saw for battens or a metal snips for lining channel, plus a knife or pad saw for the boards.
  • Drill/driver and, on masonry, a hammer drill for fixing battens or lining brackets.
  • A board lifter, or a second pair of hands, for ceiling work. Wear gloves, eye protection and a dust mask.

Materials

Which board, and what thickness?

K118 has a phenolic core (declared λ 0.019 W/mK) and, Kingspan says, an integral vapour control layer. PL4000 has a PIR core (declared λ 0.022 W/mK) and is sold per sheet. For declared R-values, Part L targets and how to choose a thickness on a solid wall, use the table and notes in how to fit insulated plasterboard to a solid wall and the K118 vs PL4000 comparison. Building Control or the designer must confirm the U-value. A batten or lining void also has to be allowed for in that calculation.

Before you start

  • Make sure the wall or ceiling is dry. Deal with damp first. Internal insulation must not be used to isolate a damp problem.
  • Plan the services. Sockets, switches and pipes need to come forward by the thickness of the new lining. Decide where new cables will run before you fix the framing.
  • Allow for lost space at window reveals, door linings, skirtings and ceiling height.
  • Seal existing gaps at floors, ceilings, corners and openings with a flexible sealant before the lining goes on.

Method 1: timber battens on a masonry wall

  1. Fix the battens. Use treated softwood battens of at least 25 × 47mm, backed with a strip of damp-proof course, fixed vertically at a maximum of 600mm centres. Add battens around the perimeter at floor and ceiling level, and around openings and services. Fix each batten about 75mm from its ends, using masonry fixings such as nylon hammer fixings. Pack with shims to get the battens plumb.
  2. Add noggings wherever a board joint would not otherwise land on timber.
  3. Cut and position the boards. Cut them about 5mm short of the floor-to-ceiling height and fit them with the long edges vertical. Place each board centrally over the battens so the sheet laps the timber by at least 19mm at joints, and butt the edges lightly together. See how to cut plasterboard.
  4. Screw the boards. Use drywall screws at 300mm centres (200mm at external corners), or large-headed galvanised clout nails at 150mm centres. Keep fixings at least 10mm from the bound edges. Kingspan's K118 guidance is at least 22.5mm penetration into the battens, without the fixing going right through. Drive screws straight, with the heads just below the surface, and do not overdrive them.
  5. Seal the perimeter and the gap at the base of the wall with flexible sealant.

Method 2: timber stud walls

On a timber frame the method is the same as for battens: studs at a maximum of 600mm centres, noggings behind unsupported joints, and the same screw or nail centres. The difference is penetration — Kingspan specifies at least 25mm into a timber frame. Work out screw length from the overall board thickness plus that penetration; what size drywall screws you need explains the calculation.

Method 3: metal wall-lining systems

A metal lining such as the Gypliner components we stock lets you line an uneven wall and leave a cavity for services. Follow the lining system instructions first. Where you are also following Kingspan's K118 guidance, the typical sequence is:

  1. Fix the metal tracks to the floor, ceiling and perimeter at a maximum of 600mm centres.
  2. Fix the stand-off brackets to the wall at 800–900mm vertical centres (check the system details), in line with the channel positions. We stock GL2 195mm and GL9 295mm brackets.
  3. Fit the lining channels, such as GL1, into the GL8 track at a maximum of 600mm centres and screw them to the brackets.
  4. Put a channel or track tight into internal corners and around openings, and use fixing straps behind any unsupported board joints.
  5. Cut the boards about 5mm short of the floor-to-ceiling height and fix them centrally over the channels with self-tapping drywall screws at 300mm centres (200mm at external corners), at least 10mm from the bound edges, with at least 10mm penetration into the metal.
  6. Seal the perimeter and base gap with flexible sealant.

Method 4: ceilings

  1. Run the boards across the joists. Fit sheets with the long edge at right angles to the joists or rafters, and support every edge. Add noggings where a joint would otherwise be unsupported.
  2. Lap the timbers by at least 19mm at sheet joints, and butt the boards lightly.
  3. Fix closer together than on walls. Kingspan specifies drywall screws at 230mm centres on ceilings, or large-headed galvanised clout nails at 150mm centres, at least 10mm from the bound edges, with at least 25mm penetration into the timber.
  4. Seal the perimeter with flexible sealant.

Insulated plasterboard is heavy overhead, so use a board lifter or a second pair of hands.

Sealing joints and finishing

If the board maker asks you to tape foil joints as the air and vapour control layer, use foil tape — see when to use foil tape. Kingspan states that K118 already has an integral vapour control layer; still follow its edge and junction details. Then tape and joint the plasterboard face, or skim, with fibre tape and jointing compound.

Common mistakes

  • Screwing insulated plasterboard straight into brick, with no battens, lining or adhesive method.
  • Using wall fixing centres on a ceiling, or missing noggings at board edges.
  • Choosing screws that do not get the specified penetration into the timber or metal.
  • Blocking a residual or service void, or forgetting that a batten cavity changes the U-value calculation.

Frequently asked questions

Can I screw insulated plasterboard straight onto a brick wall?

Not as a standard method. Fix it to battens or a metal lining, or bond it with adhesive dabs and secondary fixings as set out in the solid wall guide.

Which way should insulated plasterboard go on a ceiling?

With the long edges running across the joists, and all edges supported on joists or noggings.

Do I need a separate vapour control layer?

Kingspan states that K118 has an integral vapour control layer. For other boards, check the manufacturer's guidance and any condensation risk analysis. See also the vapour FAQ in the solid wall guide.

What thickness do I need?

It depends on the existing wall or ceiling and the U-value you are aiming for. Start with the solid wall thickness notes, what thickness of insulation for walls, and the PIR U-value calculator. Building Control or the designer must confirm it.
