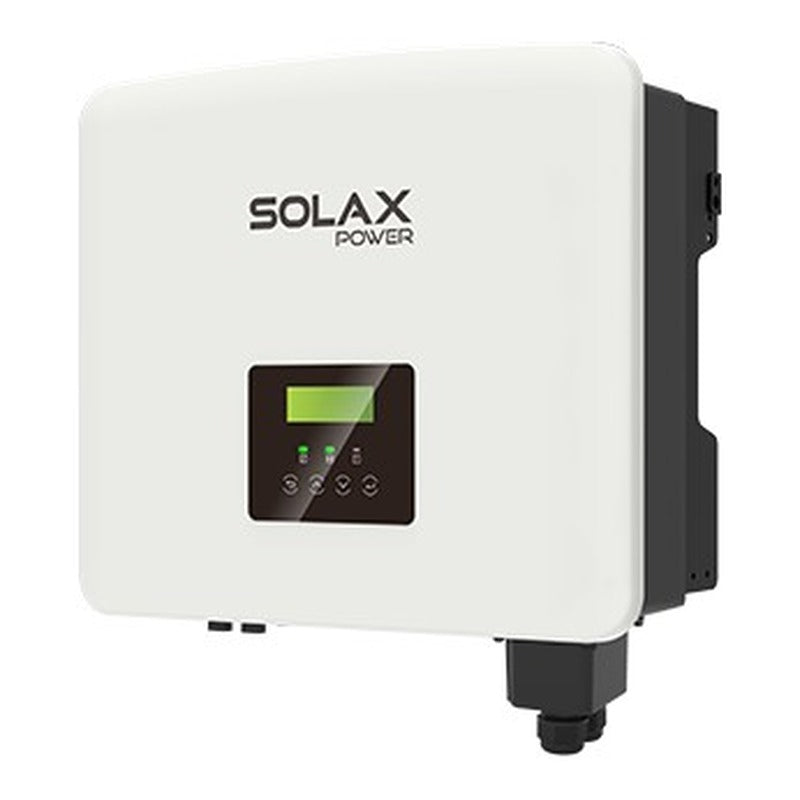

SolaX X1-Hybrid G4 7.5kW Single Phase Hybrid Inverter with DC Isolator (X1-Hybrid-7.5-D G4)
SolaX X1-Hybrid G4 7.5kW Single Phase Hybrid Inverter with DC Isolator (X1-Hybrid-7.5-D G4)
Couldn't load pickup availability
- Genuine manufacturer stock
- Trade pricing, shown ex VAT
- Call 03330 908479 for bulk quotes
SolaX X1-Hybrid G4 7.5kW single-phase hybrid inverter for solar PV with high-voltage (HV) battery storage. Two MPPTs, built-in DC switch (the "-D" model) and EPS (backup) output when a battery is fitted. Listed by our supplier as including the WiFi monitoring dongle. Priced per inverter.
Supplied for trade/professional installation. Installers must check system design before ordering.
Specifications
| Brand | SolaX |
|---|---|
| Manufacturer code | X1-Hybrid-7.5-D G4 |
| Supplier code | 10729676 |
| Rated AC output | 7500W |
| Max. recommended PV array | 15.0kWp |
| MPPT voltage range | 70–550V |
| MPP trackers / strings | 2 (1 string per MPPT) |
| Max. input current per MPPT | 16A / 16A |
| Grid connection | Single phase, 220/230/240V |
| EPS (backup) output with battery | 7500VA rated; 11250VA peak for 10s |
| EPS switchover | <10ms |
| Battery type | High-voltage (HV) battery |
| DC isolator | Built in ("-D" model) |
| Ingress protection | IP65 |
| Dimensions (W × H × D) | 482 × 417 × 181mm |
| Net weight | 25kg |
| Sold as | Each |
