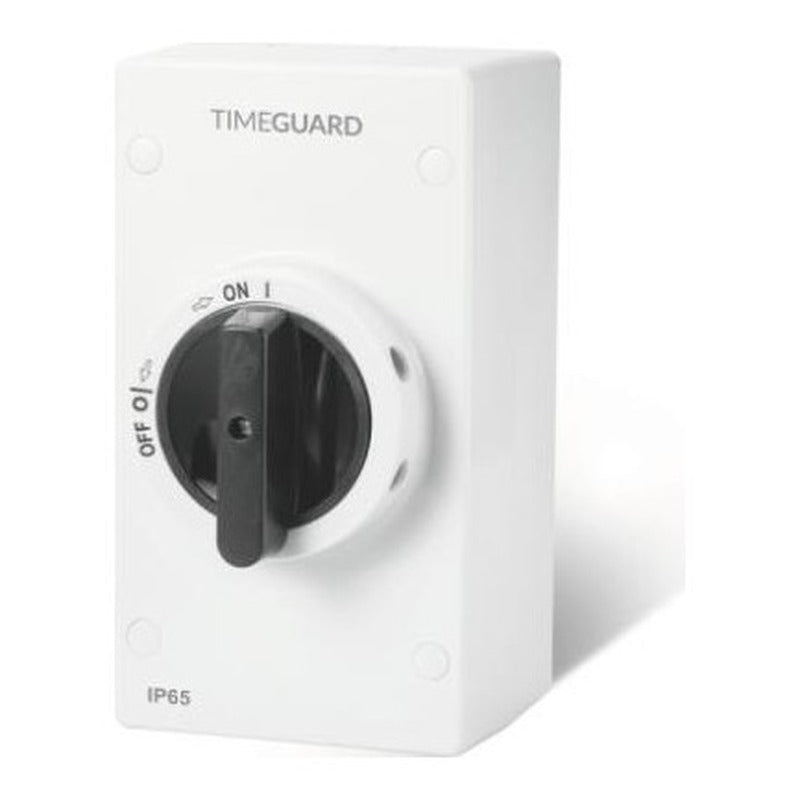

Timeguard IS4N-25DC 25A 4 Pole DC Rotary Isolator IP65, up to 1000V DC
Timeguard IS4N-25DC 25A 4 Pole DC Rotary Isolator IP65, up to 1000V DC
Couldn't load pickup availability
- Genuine manufacturer stock
- Trade pricing, shown ex VAT
- Call 03330 908479 for bulk quotes
Timeguard IS4N-25DC 4-pole DC rotary isolator switch rated 25A, up to 1000V DC, for solar PV and battery DC circuits. IP65 surface-mount enclosure with lockable switch and an interlocked cover that can only be removed in the OFF position. Priced per isolator.
Supplied for trade/professional installation. Installers must check system design before ordering.
Specifications
| Brand | Timeguard |
|---|---|
| Manufacturer code | IS4N-25DC |
| Supplier code | 10772335 |
| Poles | 4 |
| Rated current | 25A DC |
| Operating voltage | Up to 1000V DC |
| Utilisation categories | DC-PV2 / DC-PV1 / 21B |
| Arc suppression | 5ms or less |
| Ingress protection | IP65 |
| Construction | Class II, thermoplastic enclosure |
| Terminals | Rising clamp, max. 16mm² cable |
| Cable entry | Multiple M20 knockouts |
| Dimensions (H × W × D) | 180 × 100 × 114mm |
| Weight | 512g |
| Standard | BS EN IEC 60947-3 |
| Sold as | Each |
