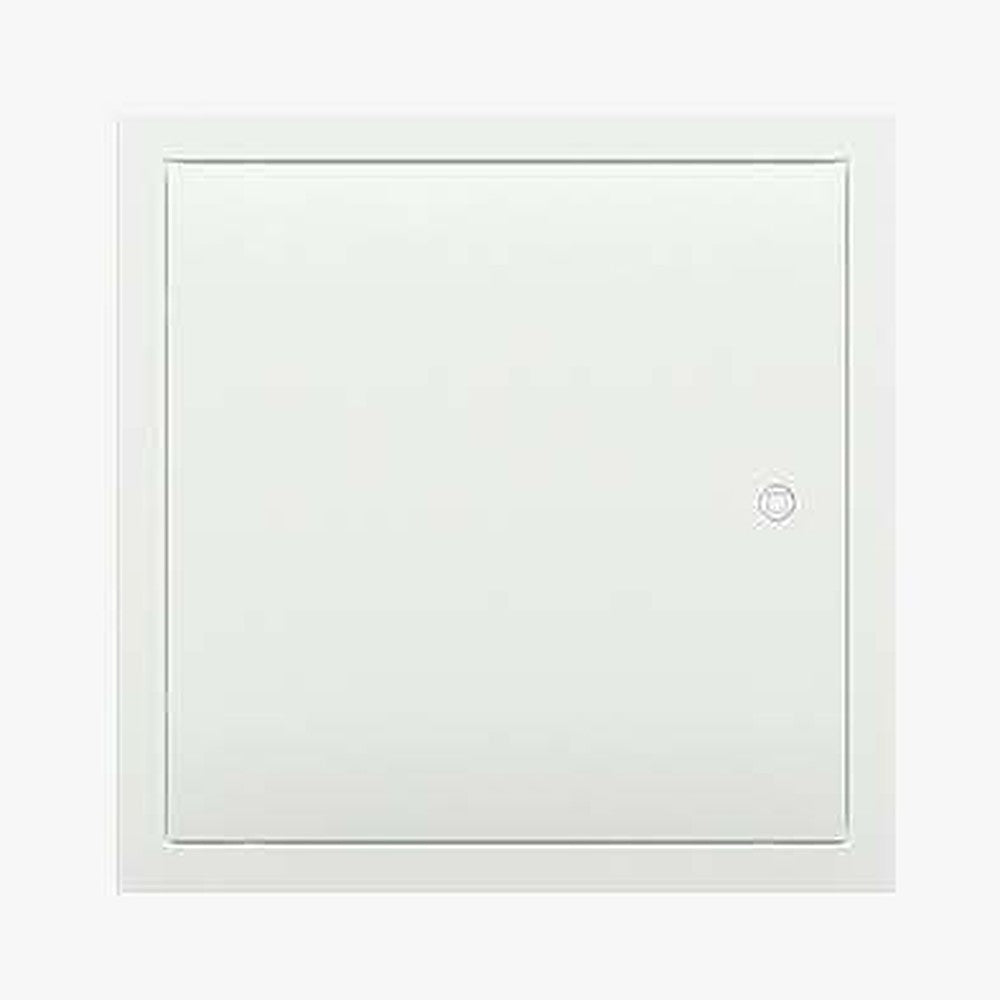

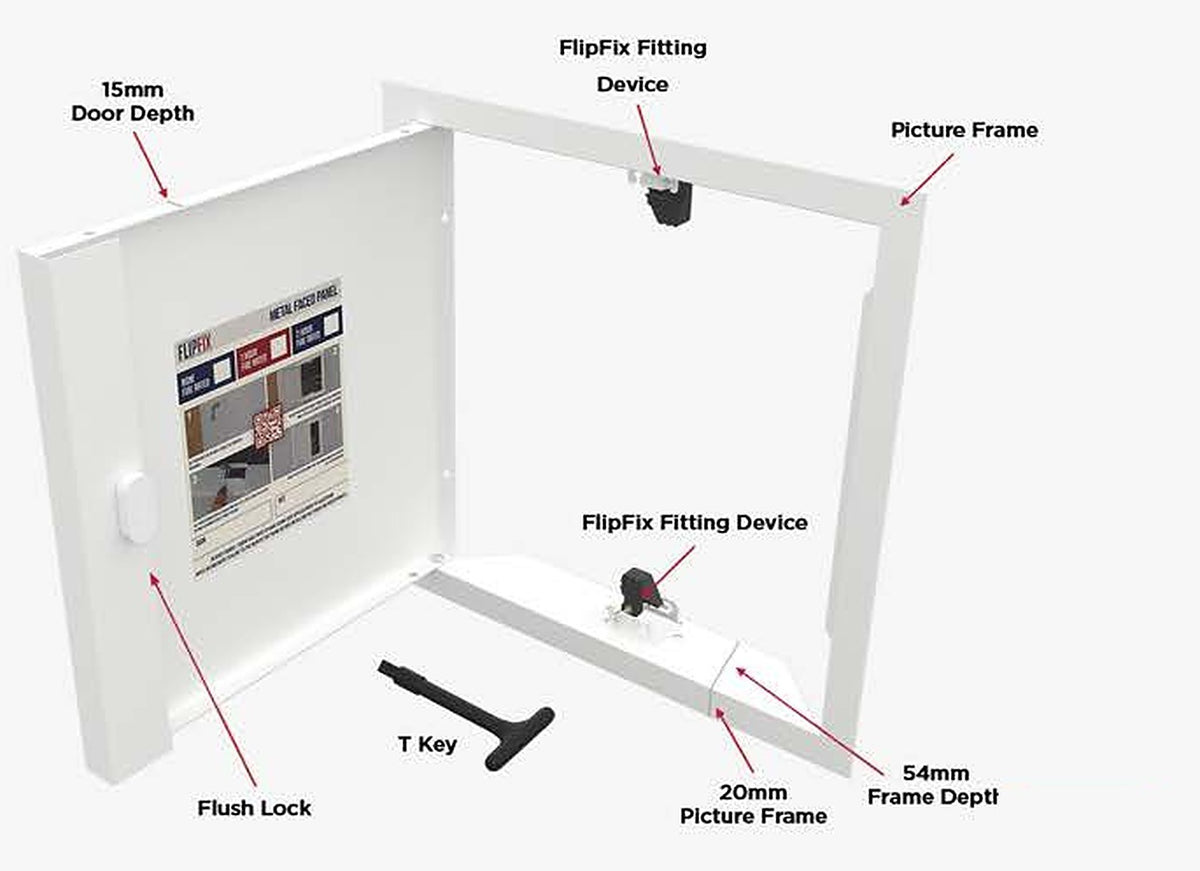

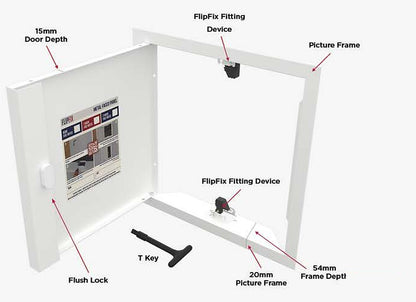

The FlipFix Metal Faced Access Panel gives neat, lockable access to services behind walls and ceilings. It has a white metal faced door, a steel picture frame and a spring-loaded flush lock, and it installs with the FlipFix fitting device. This version is non fire rated, in 12 sizes from 150 x 150mm to 1200 x 600mm.
Features
- Fire rating: Non fire rated (supplier code FF/000/MD/PF/FL). Also available: 1 hour fire rated and 2 hour fire rated.
- Fitting: suitable for walls and ceilings, installed into a pre-cut hole.
- FlipFix fitting device: no need to brace or support the structural opening, and no screws, glue or other materials are needed. FlipFix says the device saves up to 80% of the fitting time of a standard access panel: follow the fitting instructions, close the door and walk away.

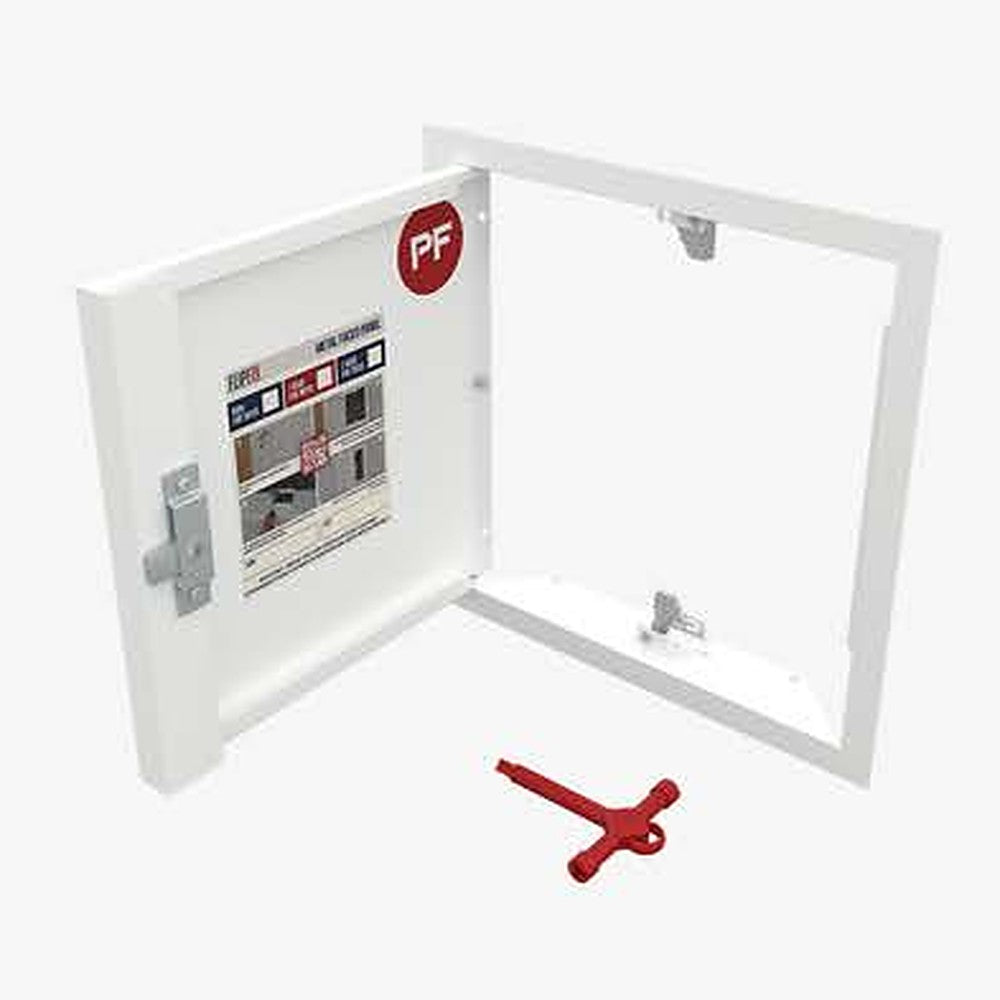

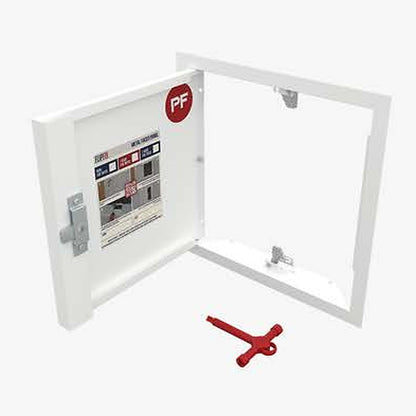

- Flush lock: spring-loaded flush lock opened with a T key, for a sleek, discreet finish with no bungs to break or go missing.
- Picture frame: 20mm picture frame. Sizes up to 600 x 600mm have the mitreless frame, made from one piece of steel with no mitred joints, for a more robust panel with a cleaner finish and less snagging on site.
- Depths: frame depth 52mm (FlipFix datasheet).
- Finish: RAL 9010 white, 30% gloss.
- Pop-out template: stock sizes come with a perforated pop-out template, built into the box, for marking out the opening.
- Not acoustic rated and not airtight rated.
Sizes and fitting
Sizes are the panel sizes listed by the manufacturer. The FlipFix fitting instructions say to cut the plasterboard so the opening is 5mm larger than the panel size, place the frame in the opening (there is no need to take the door off), then, with your drill on a low torque setting, screw in the FlipFix devices until they grip the back of the plasterboard securely.
| Size (mm) | Code (SKU) |
|---|---|
| 150 x 150mm | FF/000/MD/PF/FL-150x150 |
| 200 x 200mm | FF/000/MD/PF/FL-200x200 |
| 300 x 300mm | FF/000/MD/PF/FL-300x300 |
| 350 x 350mm | FF/000/MD/PF/FL-350x350 |
| 400 x 400mm | FF/000/MD/PF/FL-400x400 |
| 450 x 450mm | FF/000/MD/PF/FL-450x450 |
| 500 x 500mm | FF/000/MD/PF/FL-500x500 |
| 550 x 550mm | FF/000/MD/PF/FL-550x550 |
| 600 x 300mm | FF/000/MD/PF/FL-600x300 |
| 600 x 600mm | FF/000/MD/PF/FL-600x600 |
| 900 x 600mm | FF/000/MD/PF/FL-900x600 |
| 1200 x 600mm | FF/000/MD/PF/FL-1200x600 |
Need another size, lock or colour? Bespoke sizes and other lock options are made to order. Call us on 03330 908479 for a price.
Specifications
From the FlipFix datasheet for FF/000/MD/PF/FL.
| Brand | FlipFix |
|---|---|
| Application | Walls and ceilings (dual purpose) |
| Door / frame | Metal door, 20mm picture frame |
| Fire rating | Not fire rated |
| Smoke / airtightness / acoustic | Not rated |
| Frame architrave width | 20mm |
| Frame steel thickness | 0.9mm |
| Door steel thickness | 0.9mm |
| Frame depth | 52mm |
| Door infill | None |
| Seal | None |
| Ironmongery | Plastic FlipFix flush lock (nylon PA6), screw pin hinge (bright zinc plated steel) |
| Lock security level | Grade 1 – low security |
| Fixing | FlipFix clamps (nylon + 30% glass fibre); boards 8mm to 32mm |
| Structural opening | Panel height + 5mm × panel width + 5mm |
| Clear opening (door open 90°) | Panel height − 50mm × panel width − 50mm |
| Finish | Polyester powder coated, RAL 9010 pure white, 30% gloss |
Downloads & technical information
- FlipFix FF/000/MD/PF/FL non fire rated access panel datasheet (PDF)
- FlipFix downloads: spec sheets, fire test certificates, COSHH and maintenance (manufacturer website)
- FlipFix metal access panel – picture frame product page (manufacturer website)
